Getting Started

Setting up Sandbox

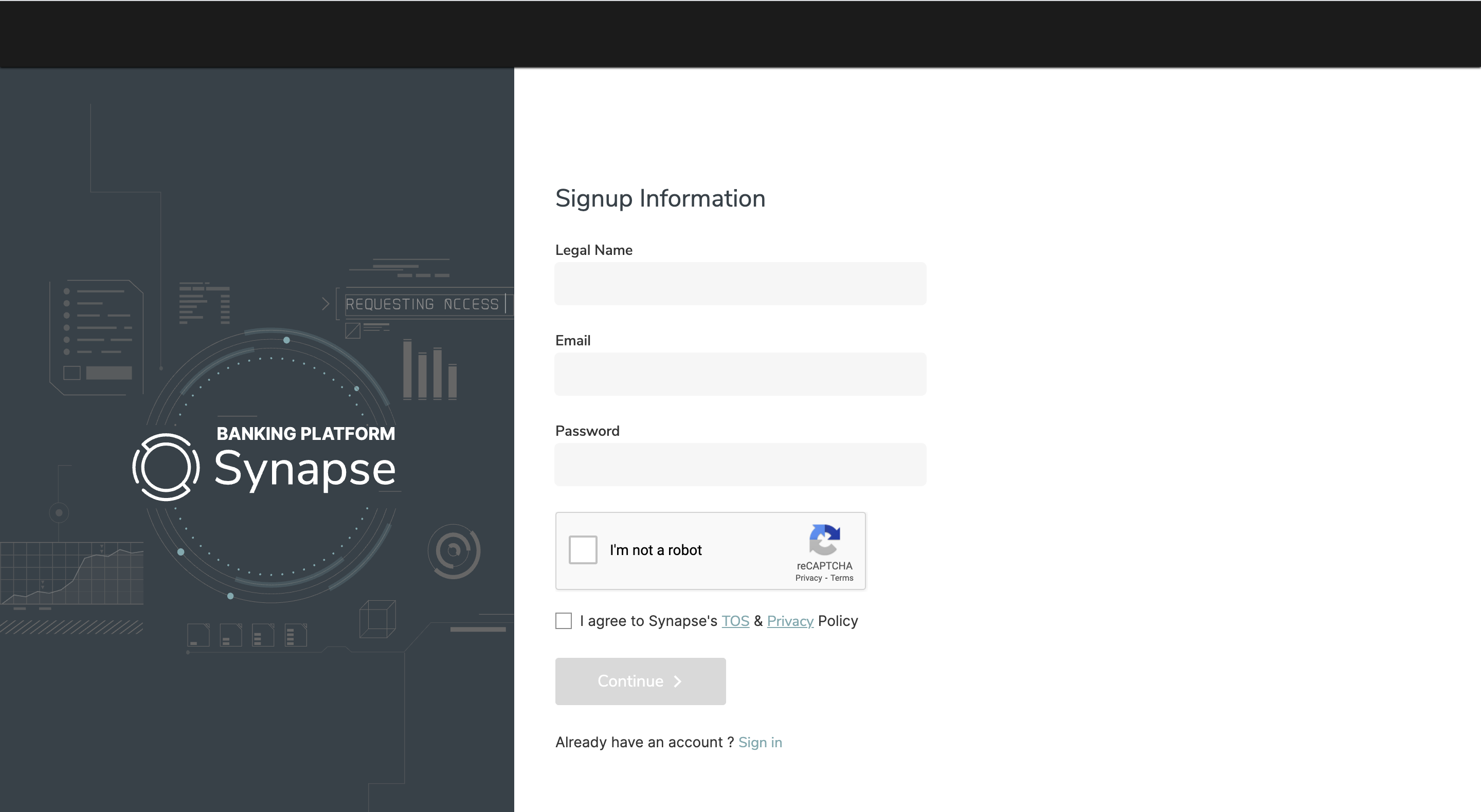

  1. Go here, to sign up for a sandbox account.

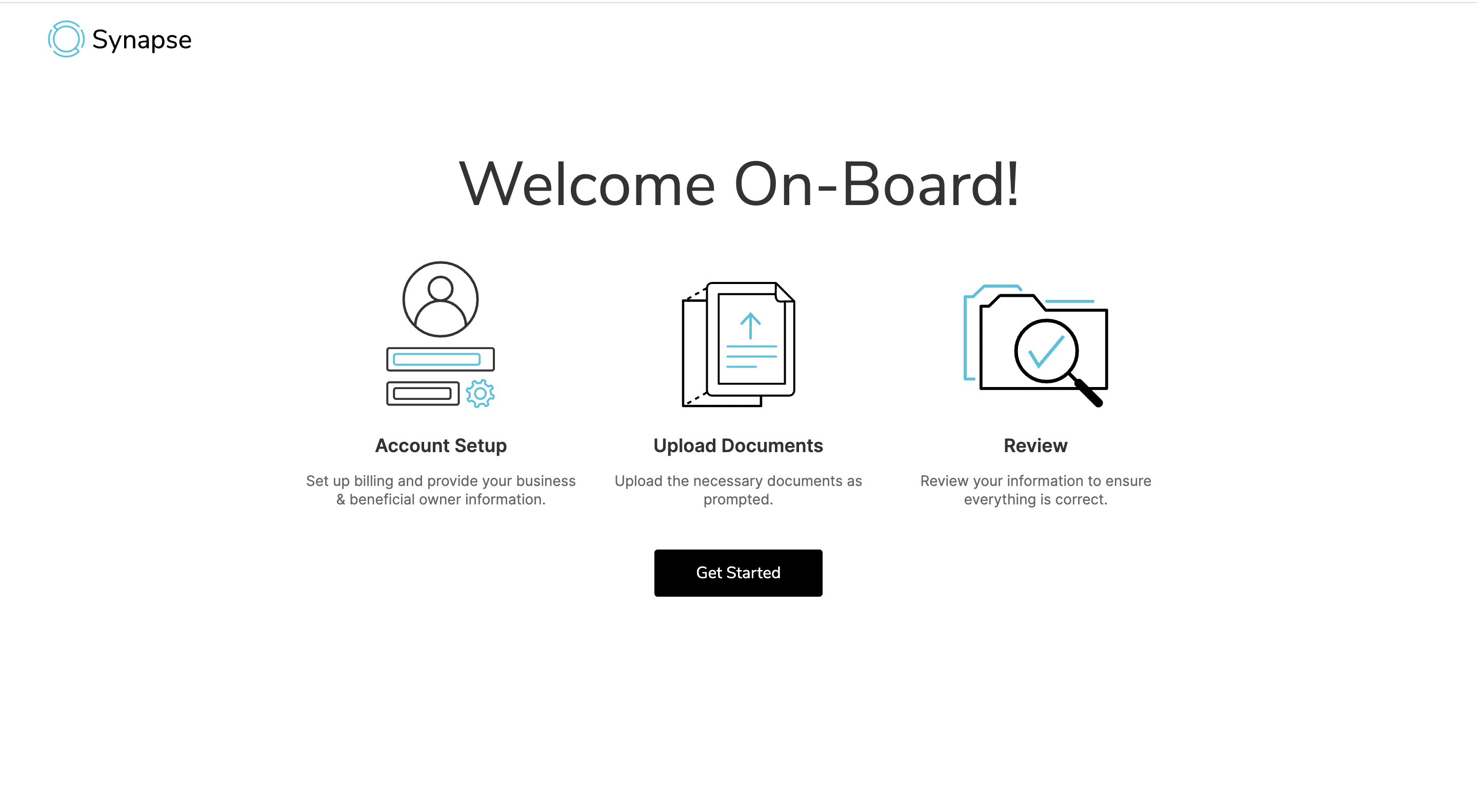

2. Finish On-Boarding. This step might feel onerous, but behind the scenes it gives us information we need to be able to enable appropriate features for you on sandbox. KYC information supplied here can be fake or real. If its real, we can use this information to enable production access for you when you are ready to go live with us. If fake, you will need to finish the same set up on our production application. This guide gives a good overview on how to finish onboarding.

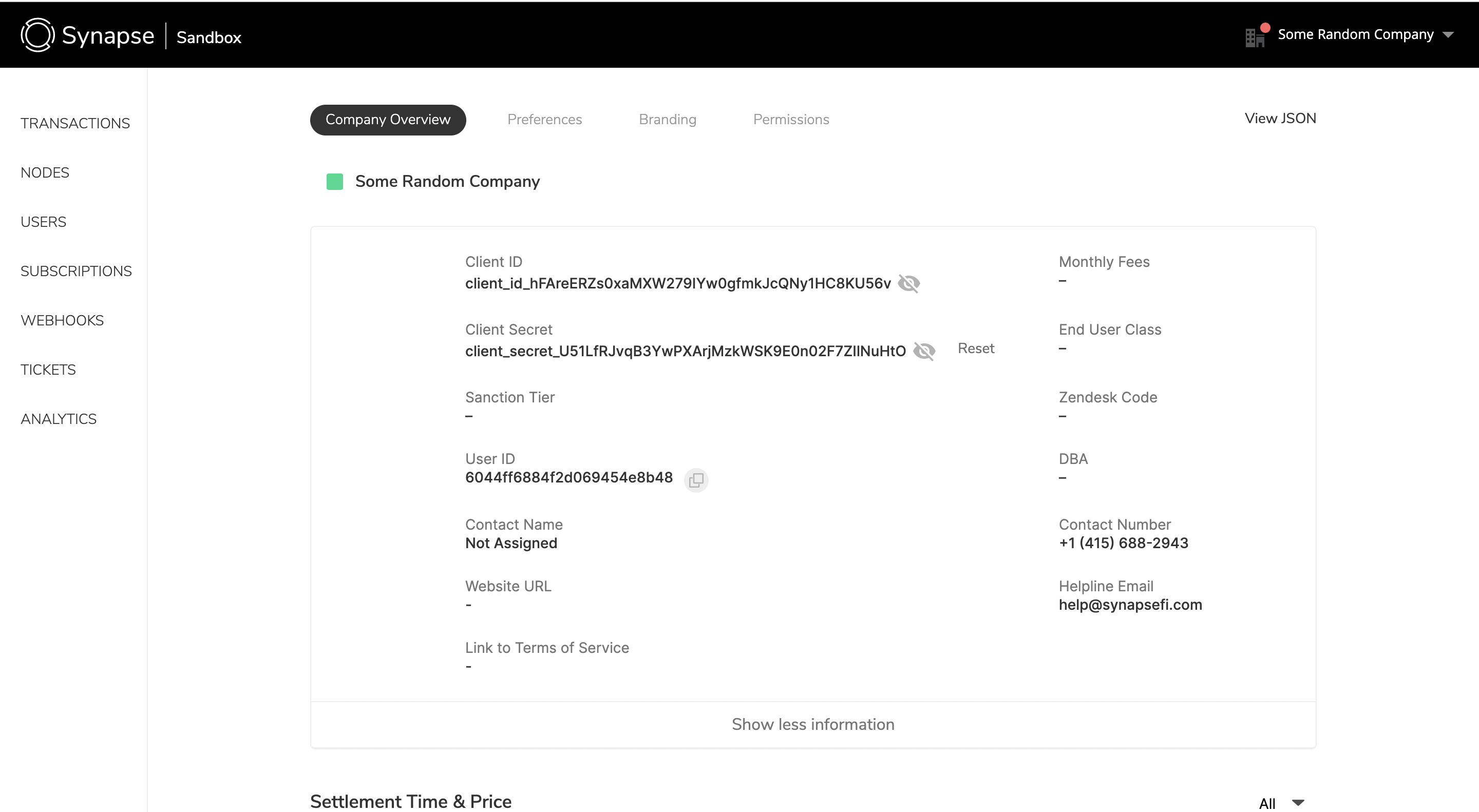

3. Go to Company Overview to get client credentials.

Thats it! Now you have everything you need to be able to start playing with Synapse APIs.

Start Building

We usually recommend downloading Postman and getting a feel for our APIs before writing code. The following steps will make this process easier.

Get Our Postman Collection

Run in Postman

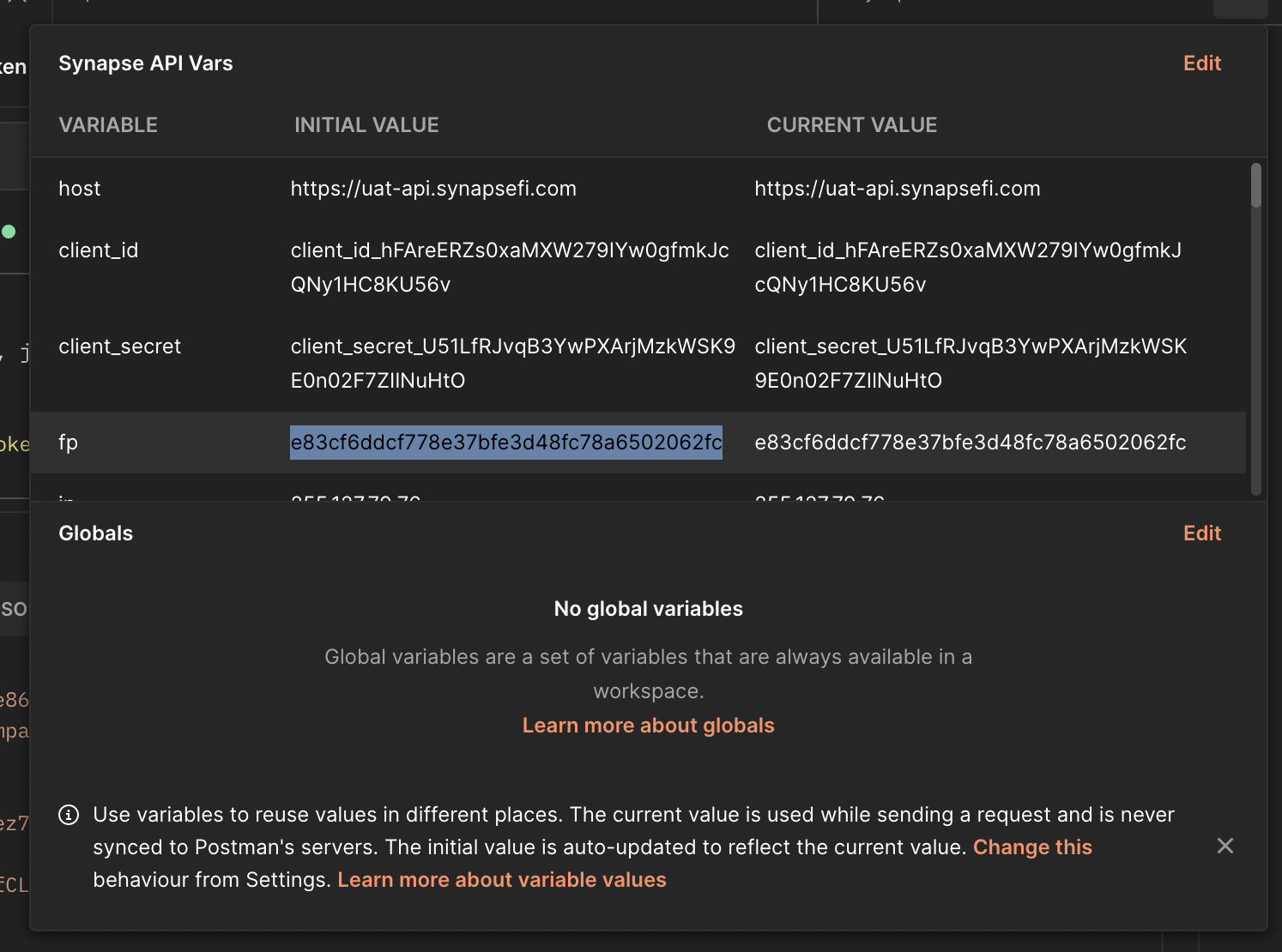

If you've downloaded our postman collection, you should be seeing our APIs on the left and the appropriate environment variables on the right.

Add Client Keys

The next step is to add your own client keys into the environment variables.

Create User

The next step is to create a user account and supply all of their KYC.

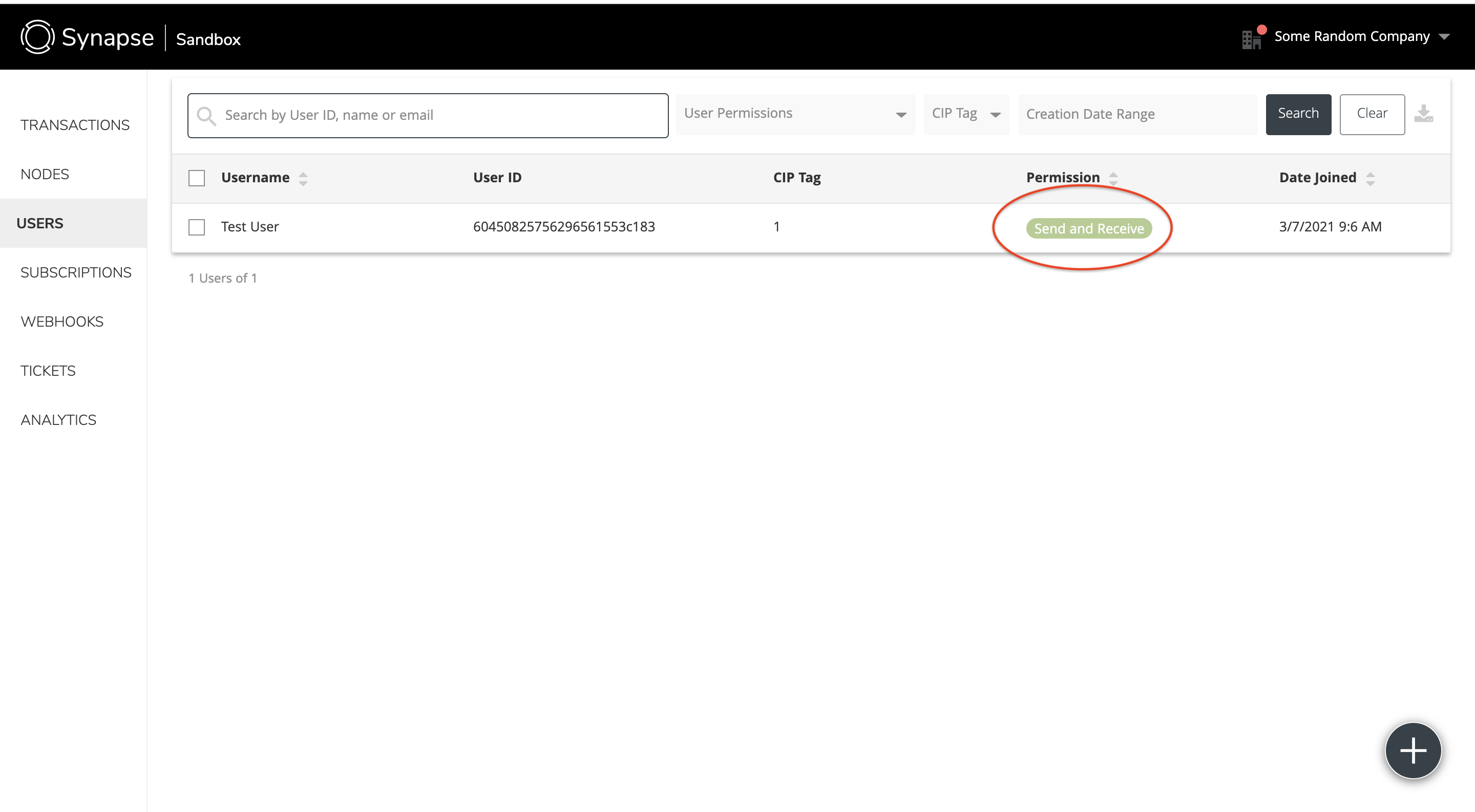

Once the user account is created, go to the dashboard to see the user there. If everything is right, you will see the user go to Send and Receive Permissions on the dashboard.

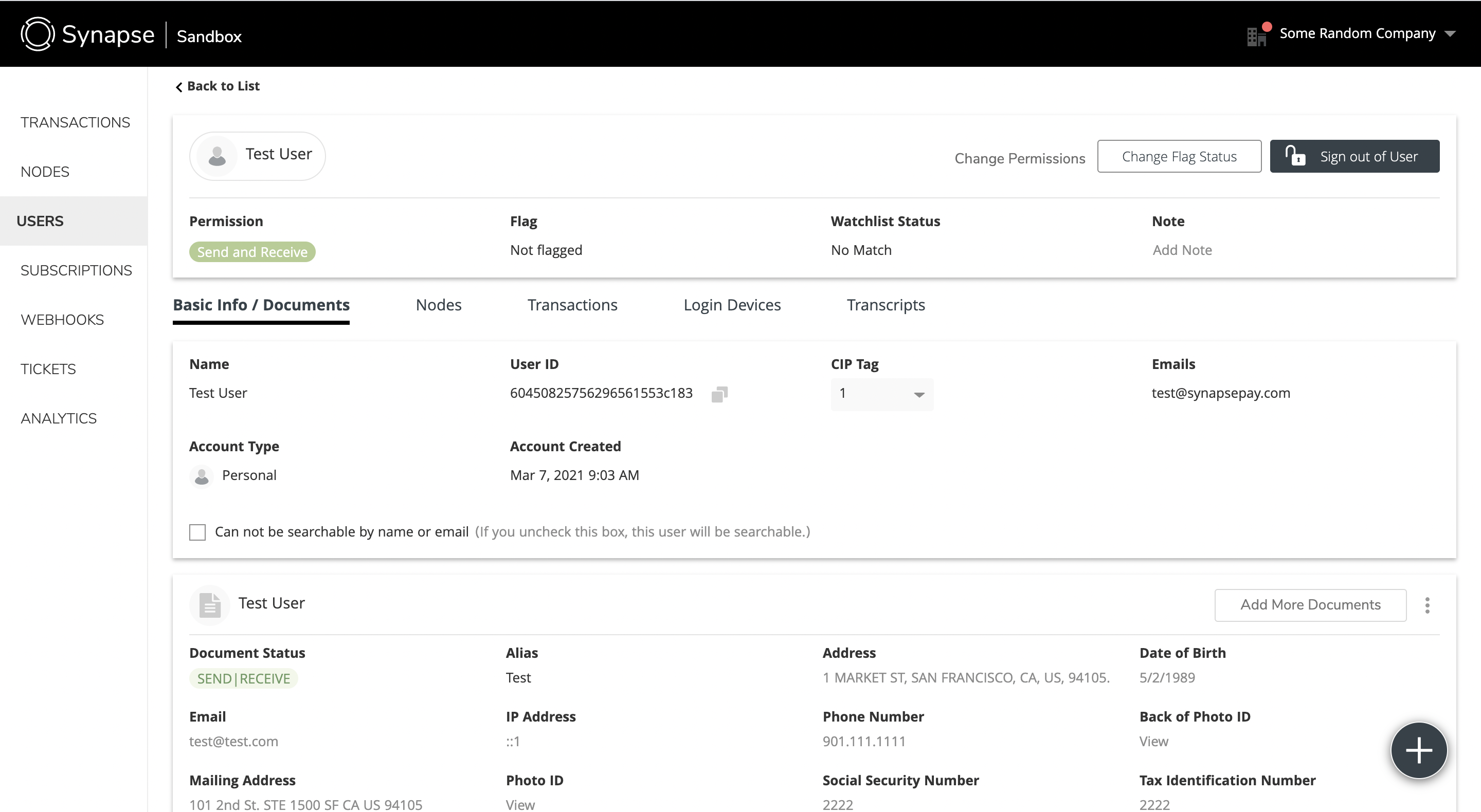

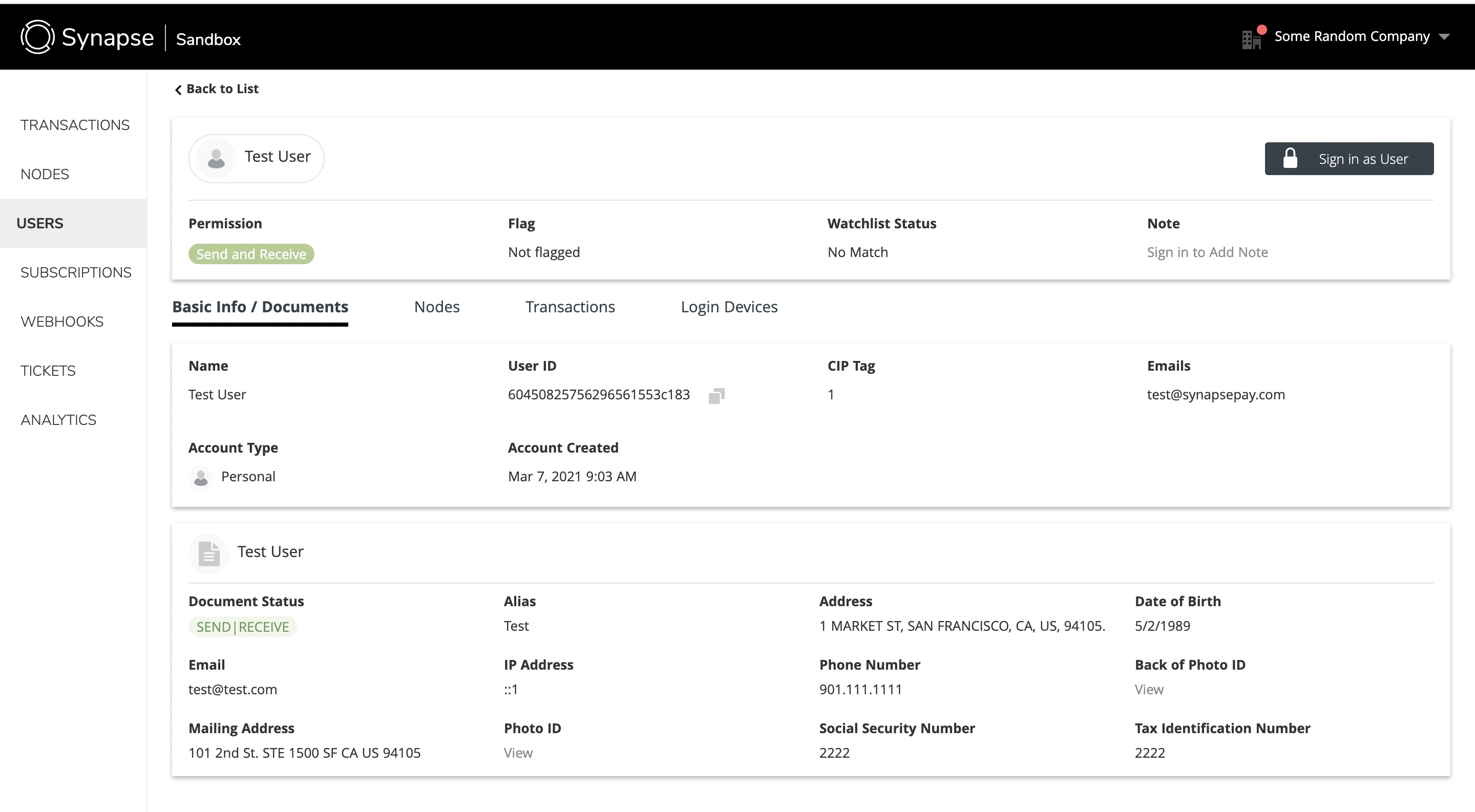

If you are curious about the user profile and want to see more details, just click on the user, the dashboard will show you all the information you just added on the user profile.

OAuth User

Next step will be to start performing actions on behalf of the user. To do that, you need to grab an OAuth token for the user.

To do that, usually you make a View User API call and grab the refresh_token from the user profile. With our postman collection, all of that is automated.

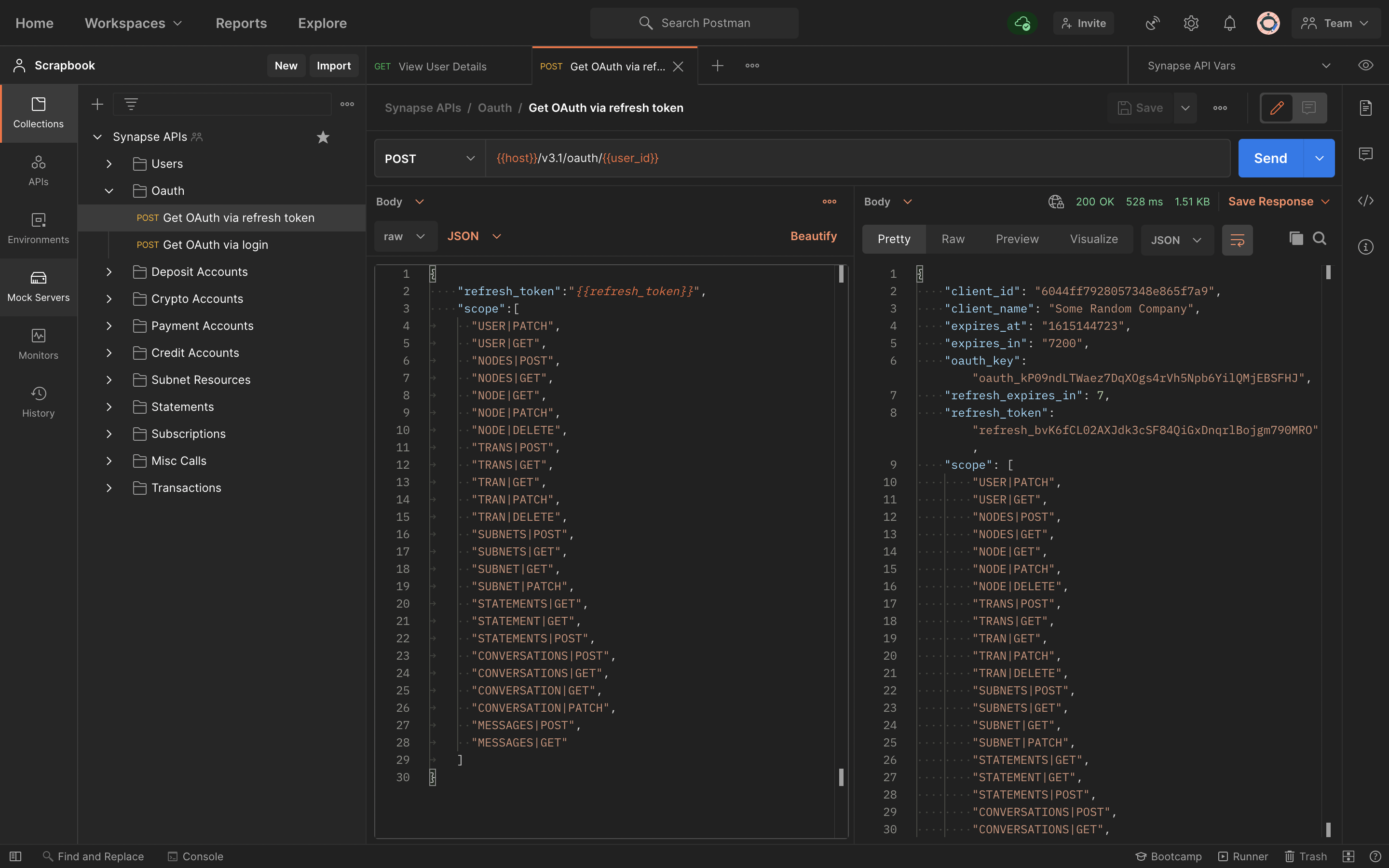

So the next step is to Create an OAuth Key. Currently we will make an OAuth key with all the scopes. You can later learn how to customize scopes as well.

Same as before, we will automatically set the appropriate OAuth key for you.

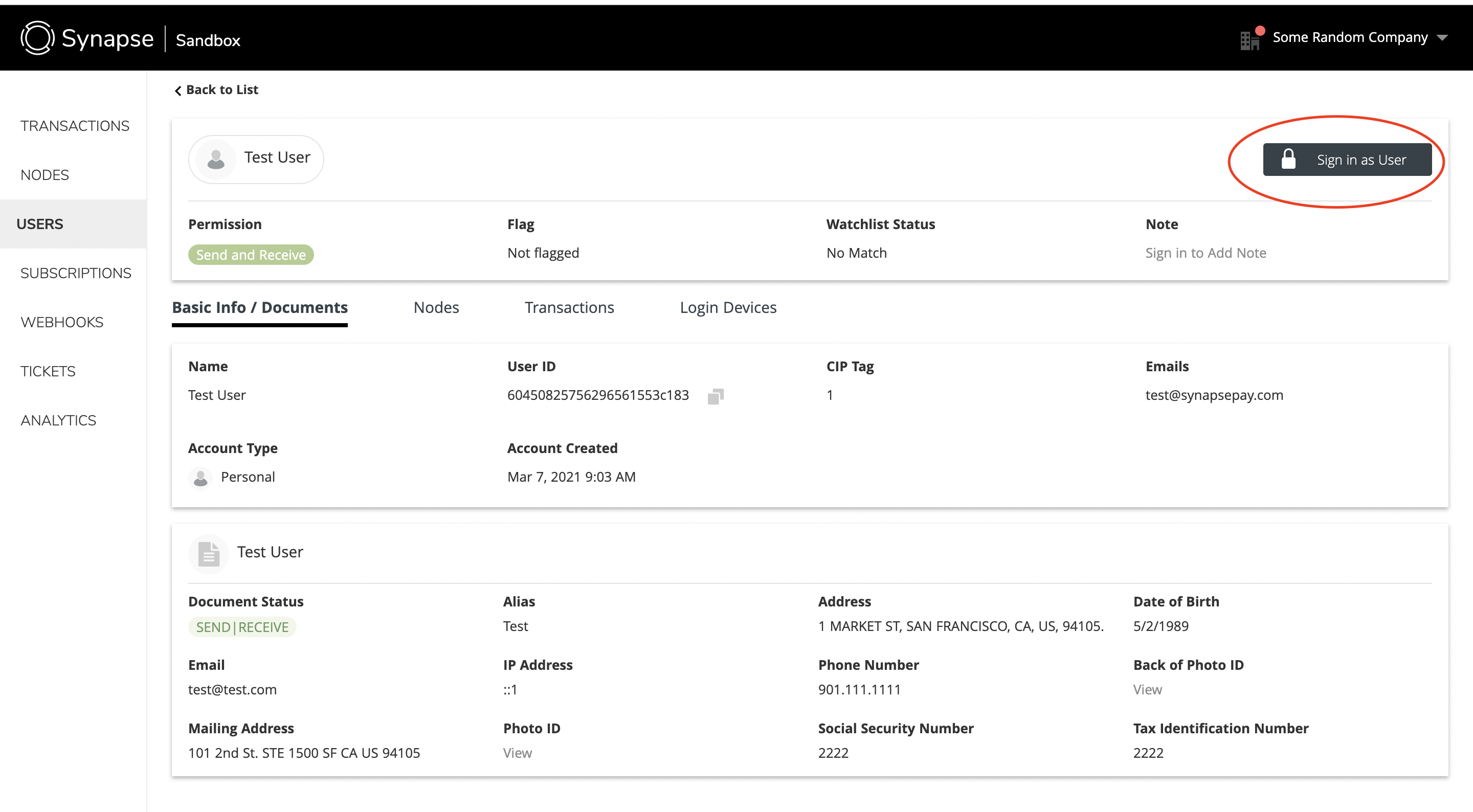

Also, when you Sign in as User on the dashboard, the same operation is happening behind the scenes.

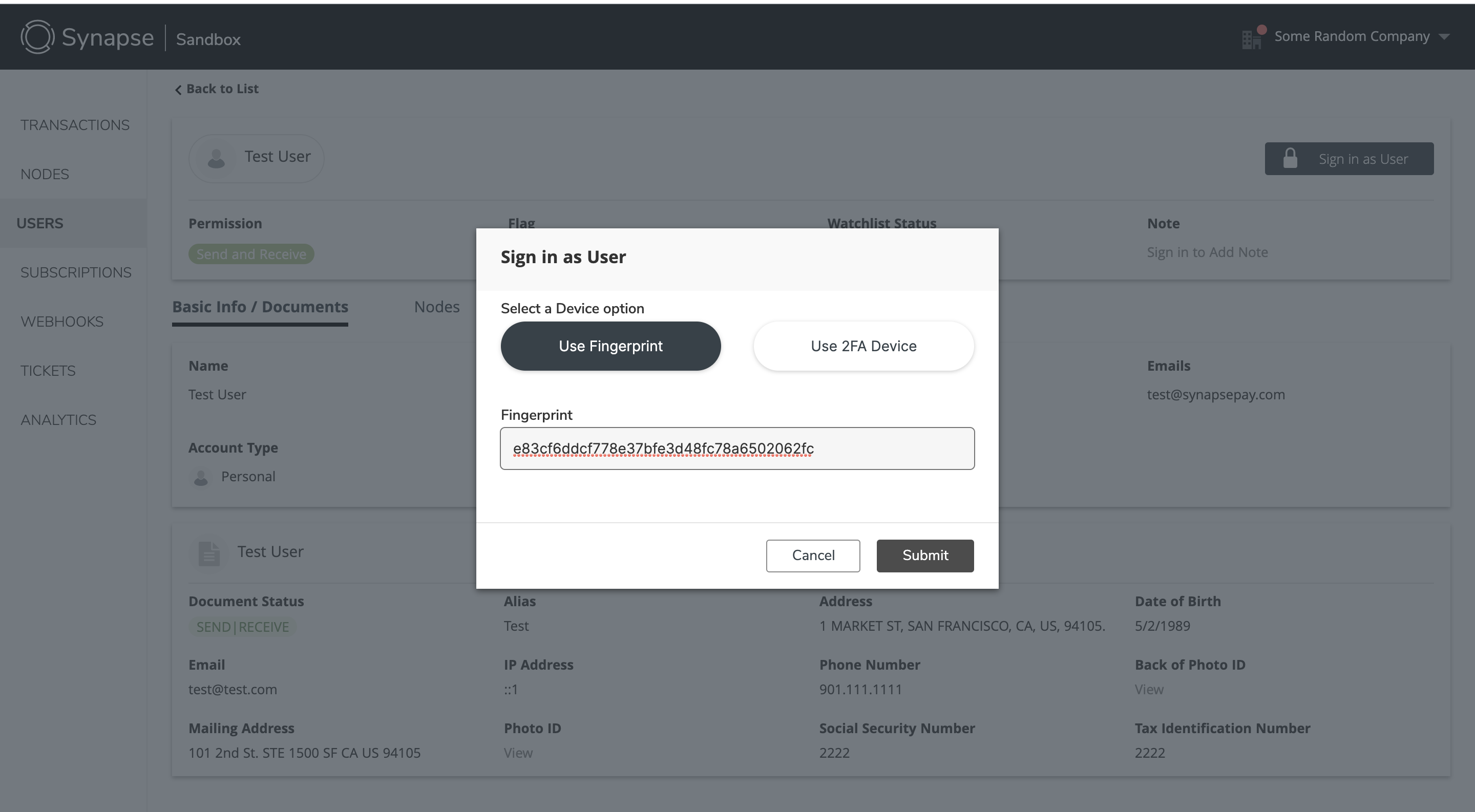

You can Sign In by supplying the fingerprint you created the user account with:

Now, you can perform all the actions on behalf of the user from the dashboard, like how you can with the APIs.

Launch a Hub

In this section, pick a hub you wish to enable for the user (Deposit, Credit or Crypto). In this example, we will pick Deposit Hub.

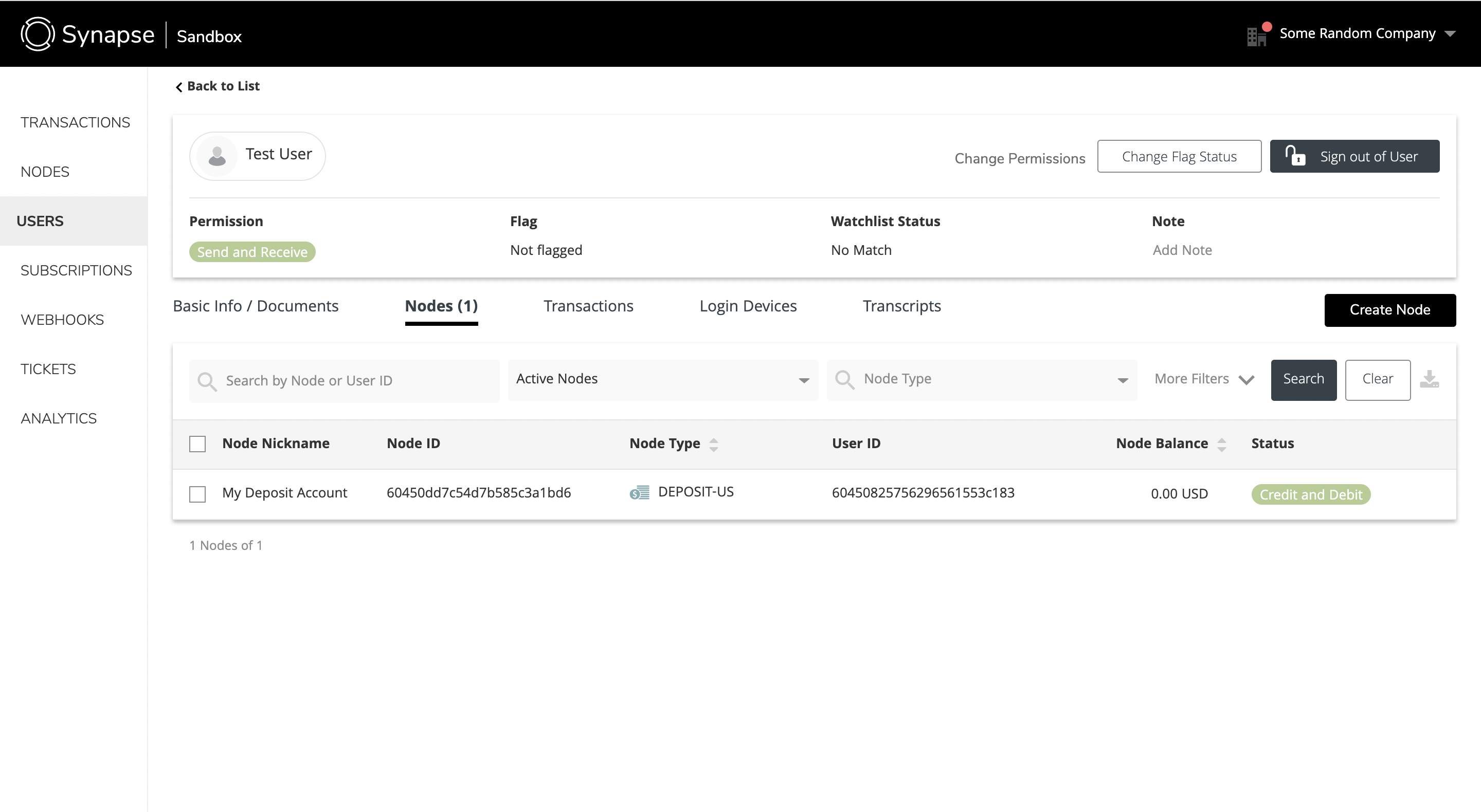

Now if you'll go back to the dashboard, you will see the Deposit Node under the user profile.

Congratulations! 🎊 🎈 🎉 You've successfully created a deposit account for your user.

Enable Some Features

Now let's enable some features on this deposit account.

Enable External ACH

In this case, our user would like to enable ACH Credits and Debits via an External Account. So lets link an external ACH account:

Now lets verify the ACH account via Micro-deposits:

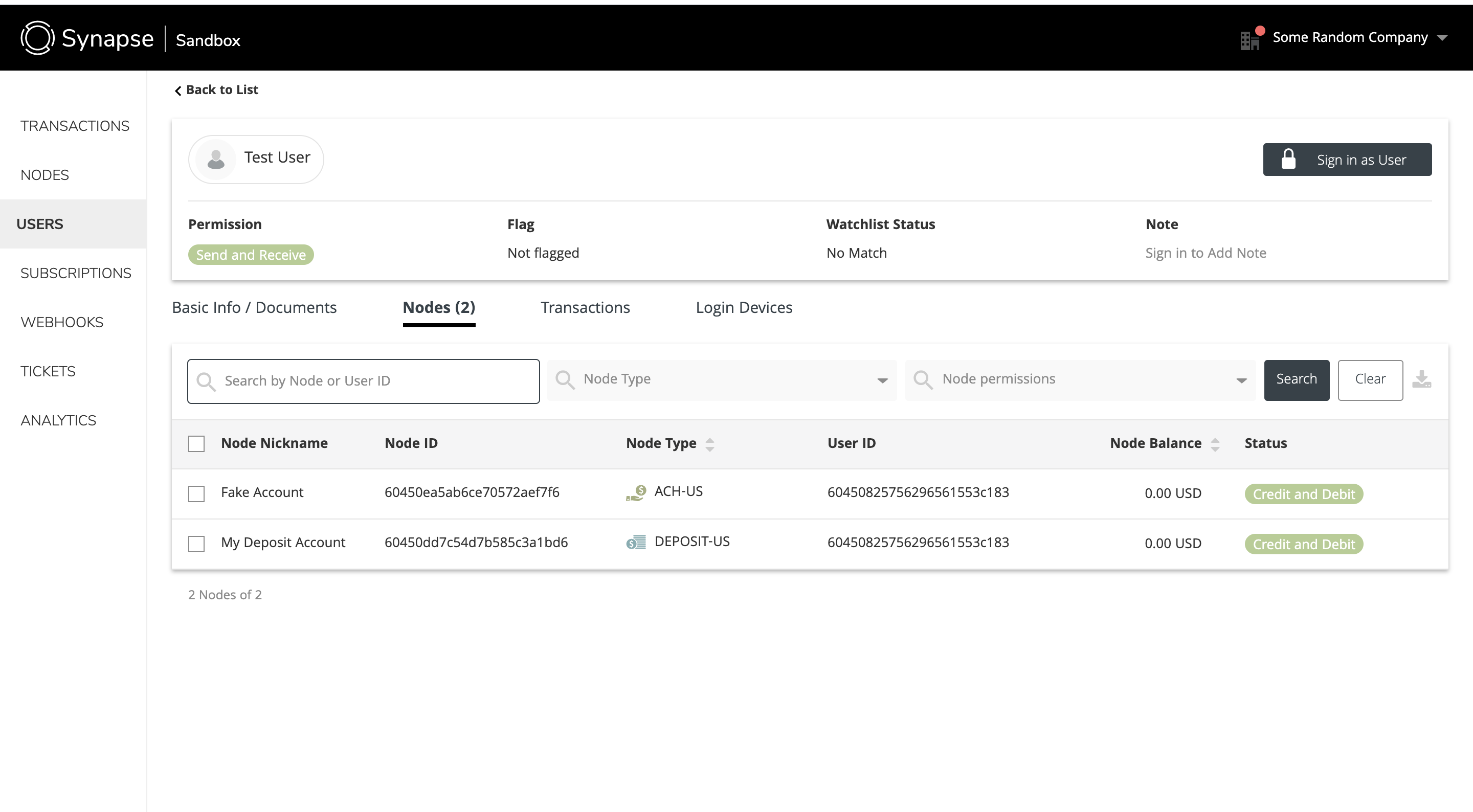

Now if you would go to the dashboard, you will see an ACH-US node linked under the user profile with Credit and Debit permissions.

Enable Direct Debit and Credit

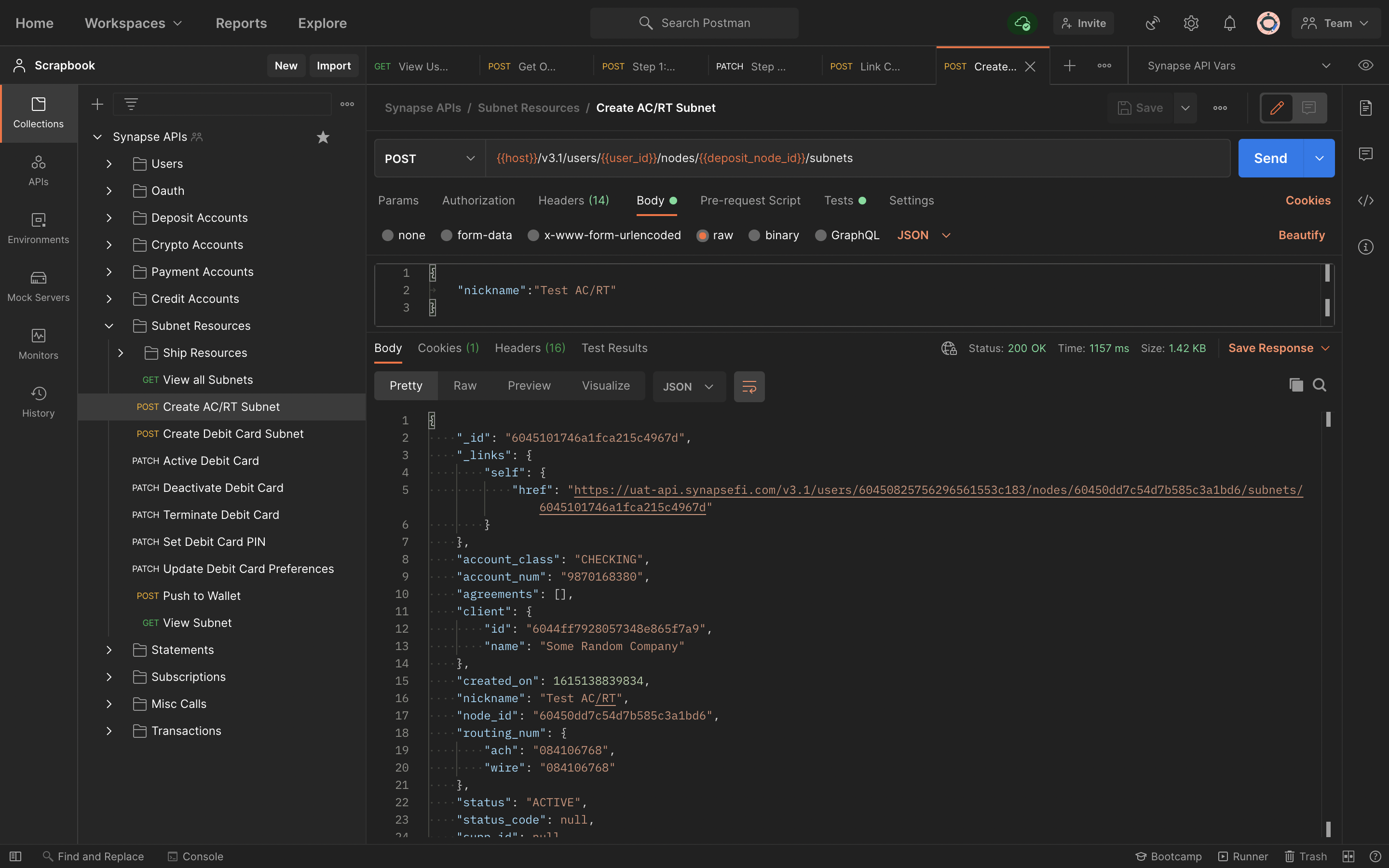

Our user would also like to issue an account and routing number that they can give to their payroll provider and apps like Venmo and PayPal. So lets issue an account number for them:

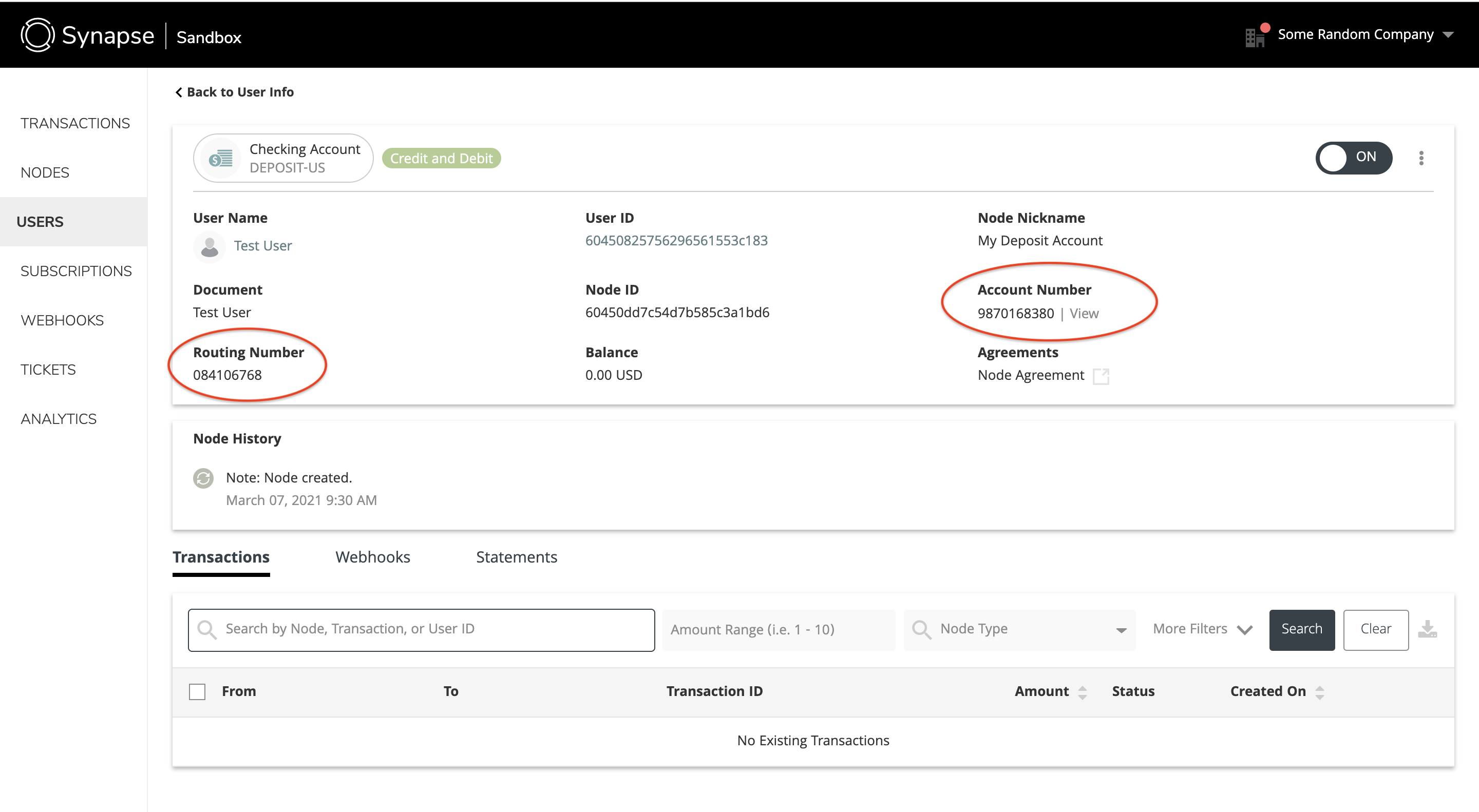

Now if you go to the dashboard, Sign In as User, and click on the Deposit Account, you will see the account and routing numbers issued on the account:

Issue a Card

Our user would also like to issue a card so that they can use this account for shopping and other expenses. So lets issue one for them:

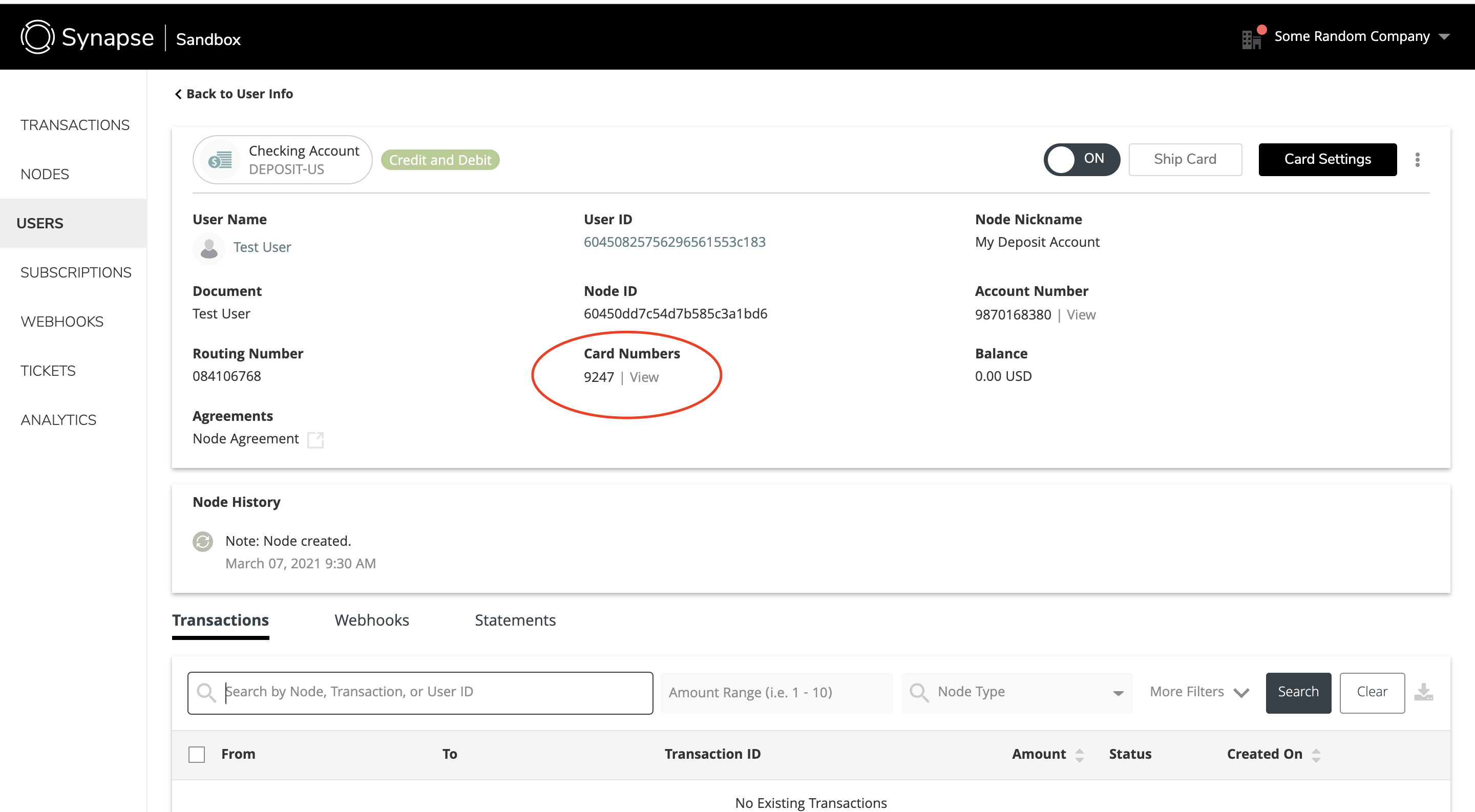

Now if you go to the dashboard, Sign In as User, and click on the Deposit Account, you will see the card number issued on the account:

Now your user has a fully functioning Deposit Hub!! 😀

PS: We would also recommend trying out our virtual terminal to emulate some card transactions.

Subscribe to Updates

In our next step, lets use Webhook Site to test subscribing to updates as they occur in the system.

Lets get our Webhook URL:

Now lets create a Subscription:

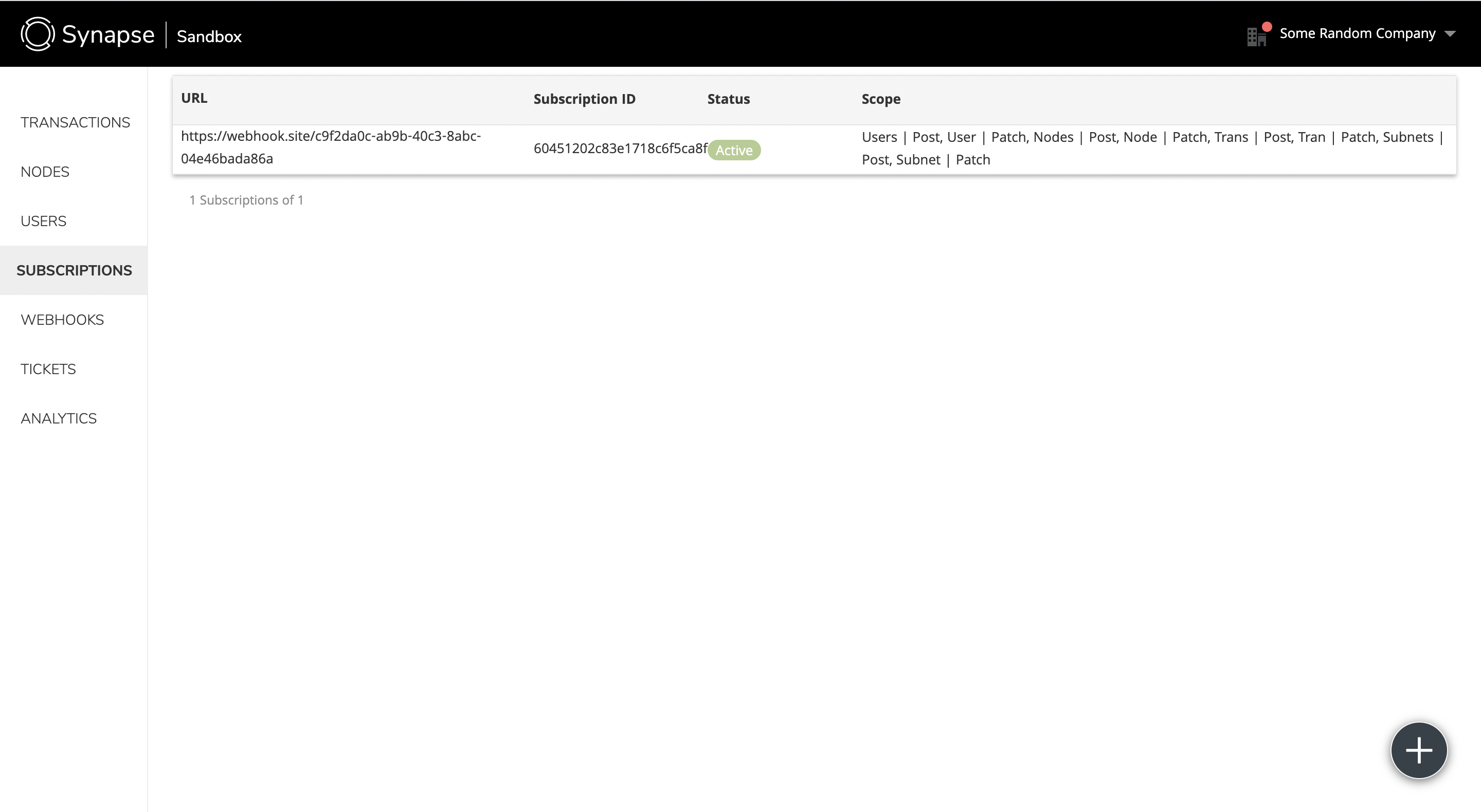

You will be able to see this subscription created on the dashboard as well:

To test this, lets issue another account number for our user:

Since we had subscribed to SUBNETS|POST updates, you will see a webhook set to your Webhook Site link:

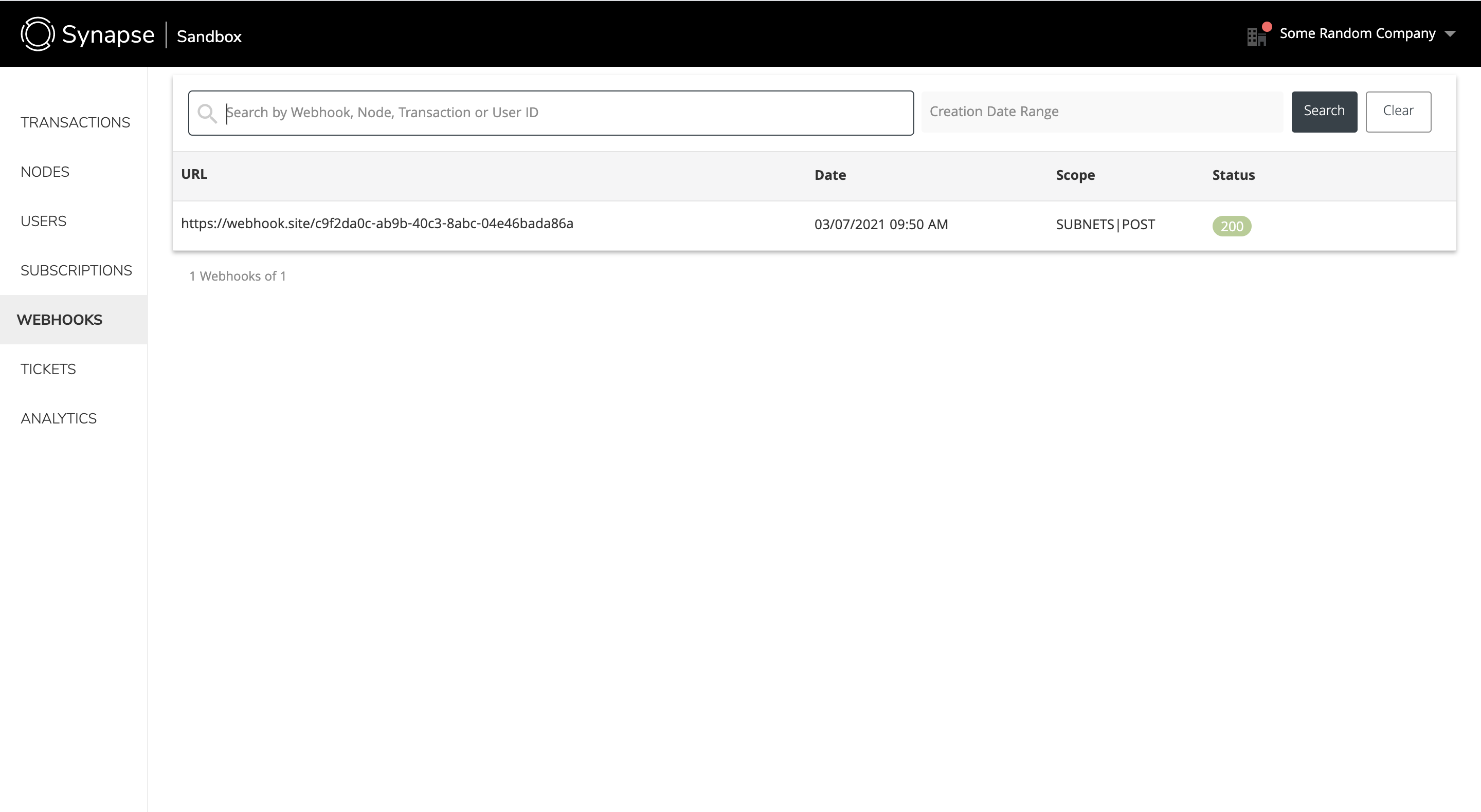

You can view the logs on the dashboard as well:

Create Transactions

As our final step to this tutorial, lets fund our user's deposit account so that they can go out and spend:

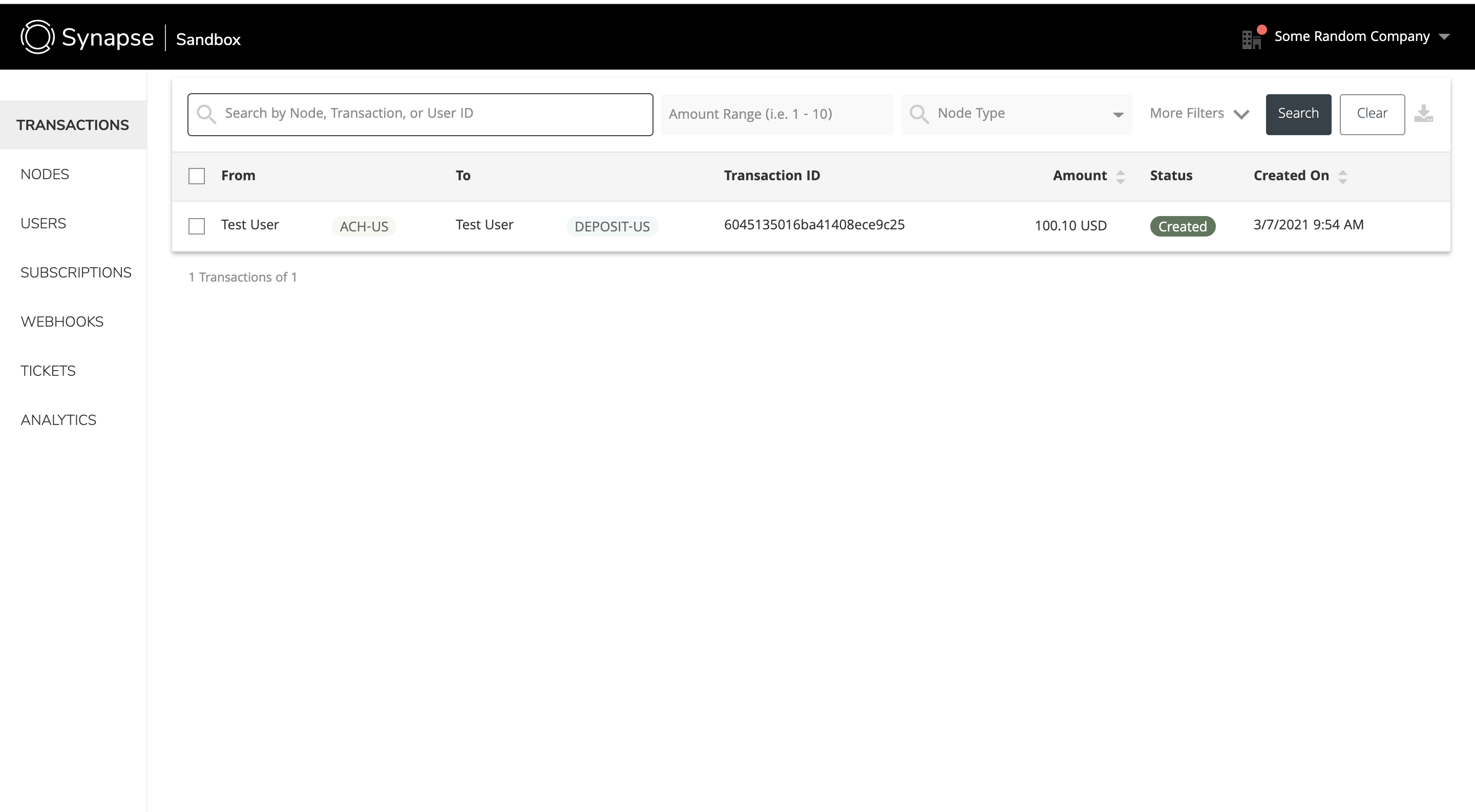

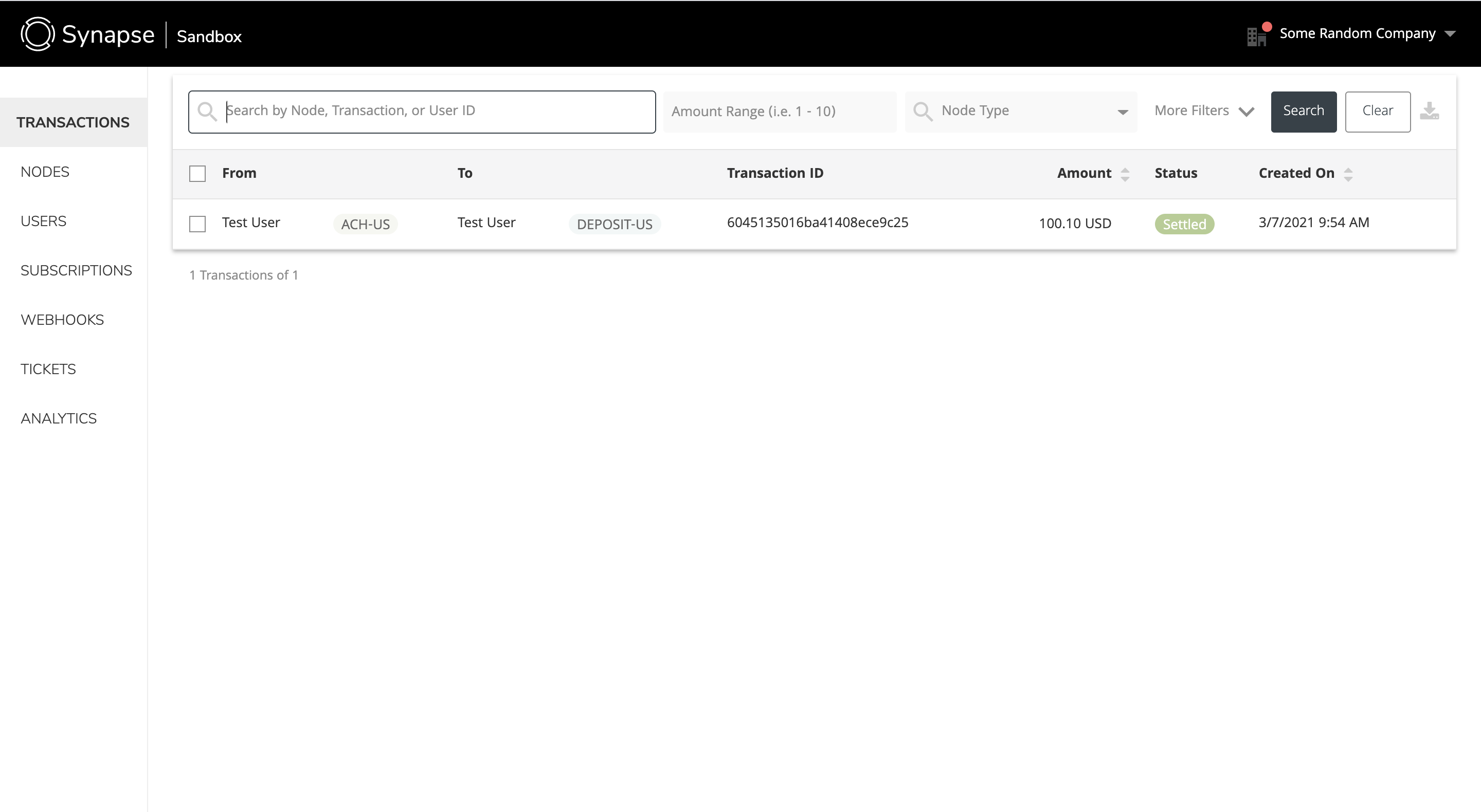

If you'll go to the dashboard, you will see the transaction created:

In few minutes, the transaction will move to settled:

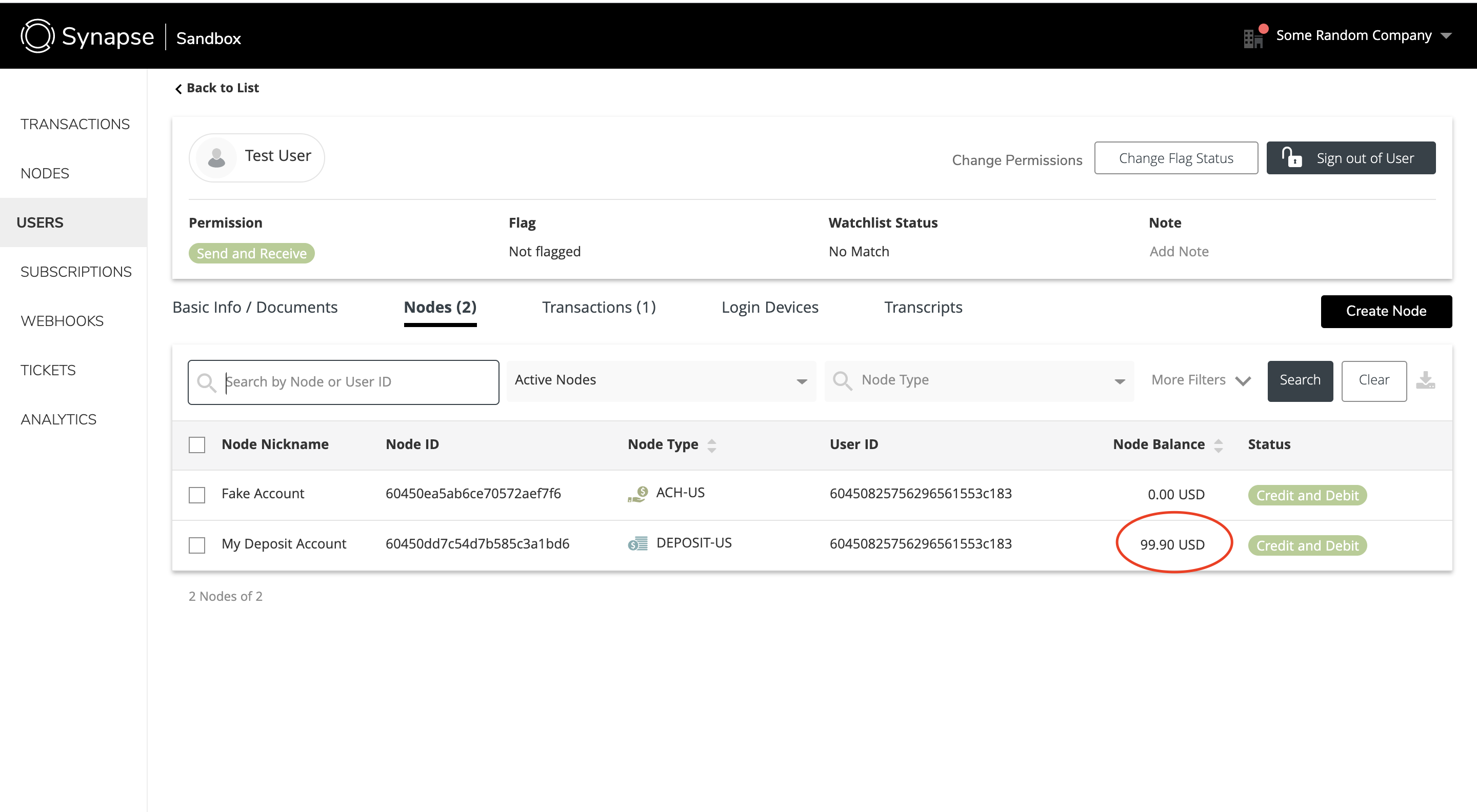

and now our user has funds in their account to spend:

Next Steps

As next steps, we would recommend: 1. Taking our language SDKs for a spin: Python | JavaScript | Ruby | PHP | Go.

2. Reviewing our How to Go-Live Resource.

3. Contacting us when ready.
